Incredible Image Quality
Incredible Beyond Full HD Resolution
Enjoy dynamic viewing experience with incredible WUXGA resolution. Deliver superb high-resolution image displays from PCs, Blu-ray and other graphic intensive media. Immerse your audience in vivid razor sharp images, even on larger screens.
Brighter, More Colourful Images
The Epson EB-5530U gives out up to 5,500 lumens of colour and white light output for clearer, brighter presentations. And with Epson’s special optical engine system, there’s no compromise on colour intensity even with the added brightness. Epson’s colour management capability means vibrant colour in any environment.
Vivid Contrast Brings Images to Life
Differences in brightness from image to image can result in loss of detail. Epson’s Auto Iris feature changes that by delivering an incredible 15,000:1 contrast ratio, automatically adjusting images for optimal clarity. In combination with C2FineTM, the EB-5530U projector offers uniform and vivid images with exceptional contrast for a smooth presentation.
DICOM SIM Mode
This colour mode produces images with clear shadows, ideal for projecting X-rays and other medical images*.
* This projector is not a medical device and cannot be used for actual medical diagnosis.
Flexible Projection
Wider Lens Shift
Enjoy the flexibility of projector and screen placement with Epson’s extended maximum vertical lens shift of 50% and maximum horizontal lens shift of 10%.
Greater Stability with Lens Shift Lock
By sliding the tab above the lens to “lock”, the internal gears that move the lens will be kept firmly in place. This prevents the lens from moving during projection, especially when the projector is installed on a tilt.
Quick Corner
With the quick corner feature, you can use the keystone correction and lens shift function simultaneously for maximum projection without having to worry about unintentionally changing the aspect ratio.
Arc Correction
Quickly and easily correct any vertical or horizontal distortion of the projected image on large screens.
Wide Range of Connectivity

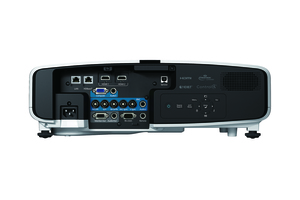

The Epson EB-5530U is compatible with a wide range of external devices, and now comes with 2 HDMI ports and HDBaseT. Ideal for large venues, HDBaseT can transmit Full HD video, audio and control at low cost through cat 5e/6 cables up to 100 metres.
Convenient Wireless Mirroring Projection**
Project contents wirelessly from compatible smart devices and laptops without any software installation with the Miracast function. The technology enables easy wireless transmission of Full HD video and sound from PCs and smart devices, eliminating the hassle of a physical connection and eradicating issues with setting up. With support for screen mirroring*, projecting your tablet and laptop screens has never been easier.
EasyMP Monitor
With Epson’s network monitoring and control software, you can see from a single PC which projectors are available and whether they are running efficiently even across the biggest networks. You can access, configure and control all your projectors remotely, as well as receive instant email alerts for pre-defined critical indicators such as non-functioning devices or overheating lamps. Each projector’s IP address can also be accessed remotely via LAN connection. Now you can send messages or announcements as JPEG files simultaneously to any number of projectors on a network. This makes the EB-5530U projector very useful for immediate communication needs or even emergencies.
Split Screen
Display images from two different sources side by side on the same screen for a more effective presentation. In video conferences, for example, images of presentation materials and remote participants can be shown simultaneously.
Web Control
By connecting your projector to a network, you can adjust your projector installation entries from a PC or smart device.
Epson iProjection
The iProjection application enables a wireless connection for projecting images and files from your smart devices. The “QR Code Reader” function makes this wireless connection even easier by simply reading the QR code that is projected on the screen from your smart devices.
Greater Economy
Maintenance Has Never Been Easier

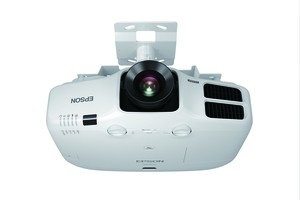

A clever ergonomic design means you can change lamps and filters easily without having to uninstall the projector from the ceiling.
Easy-to-replace Filter
The ventilation for drawing cooling air is equipped with a large high density pleated type filter to absorb airborne dust and prevent it from entering the projector, which can be removed by the side cover when there is a need to change the filter.
Easy-to-replace Lamp
The lamp can be replaced quickly without tools and having to uninstall from the ceiling.
Auto Power On
With the auto power on function, projection starts automatically once a projection signal is detected via VGA cable and, HDMI cable. This provides a quicker, easier and hassle-free presentation.
Firmware Updates
Easily update your projector’s firmware without having to bring it to a service centre. To update, simply insert a USB memory stick with the necessary updates. Updates can also be done over LAN network or via USB-B connection.
Longer Lamp Life
With a long lamp life of 10,000 hours in eco-mode, the frequency of costly lamp replacements is reduced, saving you time and money.
Eco Features
- Uses just 0.34W of power in standby mode
- Projector optics employ lead-free lenses
- Unpainted plastic housing reduces the environment impact
- The flame retardants used in the plastic housing do not contain chlorine or bromine
Better Products for a better future™
For more information on Epson’s environmental programmes, visit http://global.epson.com/SR/environment
