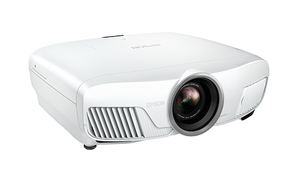

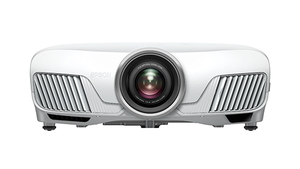

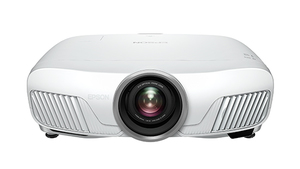

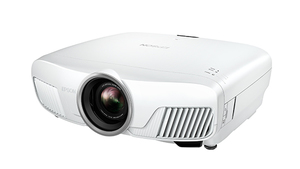

Epson Home Theatre EH-TW7400 4K PRO-UHD 3LCD Projector

Zoom In
Epson Home Theatre EH-TW7400 4K PRO-UHD 3LCD Projector
Epson Home Theatre EH-TW7400 4K PRO-UHD 3LCD Projector
Epson Home Theatre EH-TW7400 4K PRO-UHD 3LCD Projector
Epson Home Theatre EH-TW7400 4K PRO-UHD 3LCD Projector
Epson Home Theatre EH-TW7400 4K PRO-UHD 3LCD Projector
Epson Home Theatre EH-TW7400 4K PRO-UHD 3LCD Projector
Epson Home Theatre EH-TW7400 4K PRO-UHD 3LCD Projector
Epson Home Theatre EH-TW7400 4K PRO-UHD 3LCD Projector

IMMERSIVE EXPERIENCES AT THE COMFORT OF YOUR HOME

Project stunning colour images and incredible details with 3LCD technology. Epson's EH-TW7400 will keep you engaged and fully immersed every step of the way. Be transported into a world of clarity, vibrancy and realism right in the comforts of your own home.

  • 4K PRO-UHD Resolution
  • White and Colour Brightness at 2,400 lumens
  • Flexible Installation with Optical Lens Shift
  • Impressive 3D Image Quality
  • Flexible Conversion from 2D to 3D
  • Picture-in-Picture (PiP)

Check back soon on date of availability.

Find Accessories Support

High-definition Images with 4K Enhancement Technology
4K enhancement technology shifts each pixel diagonally by 0.5 pixels to double the resolution to 3840 x 2160, surpassing full HD image quality to give you unbelievable sharpness, clarity and detail on all your presentations.

Epson 4K PRO-UHD
Delivers an amazing 4K UHD experience with advanced pixel-shifting, resolution-enhancement technology*4.

Flexible Installation with Optical Lens Shift
The wide lens shift range of these projectors provides exceptional installation flexibility. A short focal length as little as 300cm is possible with a 100-inch screen. A broad shift range of 96% vertically and 47% horizontally with the optical lens shift function also keeps image deterioration low, allowing you to position your projector at any point in the room.

Compact Design for Easy Ventilation
Designed with the air intake and exhaust at the front so that you can easily install them even in narrow spaces. Place them on a bookshelf or close to walls without worrying about maintaining clearance for ventilation.

Active 3D with Bluetooth Glasses
Lighter than InfraRed 3D glasses, the Full HD RF 3D Glasses™ are more comfortable and can be connected smoothly via Bluetooth without any transmission interference from obstacles in the room.

Flexible Conversion from 2D to 3D
The projectors feature a unique 2D to 3D conversion function with three levels of image depth. Simply select the screen size and adjust it to your preference, then sit back and be immersed in an engaging movie experience.

Picture-in-Picture (PiP)
The Picture-in-Picture function gives you a preview of other HDMI source that you have intention to switch on your screen. Easily swaps it with the main picture or change the size and placement of sub-picture on the screen.



Projection Technology:

Projection Technology: RGB liquid crystal shutter projection system

Specifications of Main Parts:

LCD: Native Resolution: 1080p
Size: 0.74” wide panel with MLA (C2 Fine, 12 bit, OD)Projection Lens: Type: Power Zoom, Power Focus
F-Number: 2.0 - 3.0
Focal Length: 22.5 - 46.7 mm
Zoom Ratio: 1 - 2.1
Throw Ratio: 1.35 - 2.84Lamp: Type: 250 W UHE
Life (High / Medium / Eco)*1: 3,500 / 4,000 / 5,000 hours

Brightness1:

White Light Output (Normal/Eco): 2,400 lm / 590 lmColour Light Output: 2,400 lm

Connectivity:

USB Interface: USB Type A: 2 (Right USB: Wireless LAN, Firmware Update, Copy OSD Settings) (Left USB: Opt. HDMI cable with 300mA power supply)
USB Type A: (Left USB: Opt. HDMI cable with 300mA power supply)
USB Type B: USB Mini-B x 1 (For Service and Firmware Update)Network: Wired LAN: RJ45 x 1
Wireless: Optional (ELPAP10)Analog Input: D-Sub 15Pin: 1 (Blue)Digital Input: HDMI: 2Control I/O: RS-232C: D-Sub 9pin x 1
Trigger Out (12V): 3.5mm Mini Jack x 1

Contrast Ratio:

Contrast Ratio: 200,000:1

Screen Size (Projected Distance):

Zoom : Wide: 50” - 300” [1.48 - 9.08 m]Zoom : Tele: 50” - 300” [3.13 - 18.99 m]Standard Size: 100” screen 3.00 - 6.30 m

Geometric Correction:

Vertical Keystone: ±30 degrees

Adjustment Functions:

Picture In Picture: YesAspect Mode: Yes (Auto / Normal / Full / Zoom )Frame Interpolation: Off / Low / Normal /High (2D and 3D Mode)

Image Enhancement:

Image Preset Mode: Yes (Off / Preset1 / Preset2 / Preset3 / Preset4 / Preset5)Mpeg Noise Reduction: YesSuper Resolution: Yes (Fine line adjust / Soft focus detail)Detail Enhancement: Yes (Range / Strength)

Start-Up Period:

Start-Up Period: 19 seconds
Warm-up period: 30 seconds

Operating Temperature:

Operating Temperature: 5 - 35 °C <41 - 95 °F> (0m/0ft - 2286m / 7500ft)
5 - 30 °C <41 - 86 °F> (over 2286m / 7500ft)
20% - 80% humidity, No condensation

Operating Altitude:

Operating Altitude: 0 - 3048 m <0 -10000 ft> (over 1500 m / 4,921 ft : with high altitude mode)

Dimension Excluding Feet (W x H x D):

Dimension Excluding Feet (W x H x D): 520 x 170 x 450 mm

Weight:

Weight: Approx. 11.2 kg

Direct Power On/Off:

Direct Power On/Off: Yes / NA

3D Features:

3D Display: Yes (Auto / 3D / 2D)3D Format: Side by Side / Top and Bottom3D Depth: -10 to +102D - 3D Conversion: Yes (Off / Weak / Medium / Strong)

Optional Wireless & Built In Lan Specifications:

Supported Speed for each Mode: IEEE 802.11b (2.4GHz): 11 Mbps*3
IEEE 802.11g (2.4GHz): 54 Mbps*3
IEEE 802.11n (2.4GHz): 130 Mbps*3Wireless LAN Security: WPA-PSK, WPA2-PSKSupported Connection Mode: Infrastructure, Access Point

Cool Down Period:

Cool Down Period: 16 seconds

Fan Noise:

Fan Noise (Normal / Eco): 31 dB / 20dB

Projectors Facets:

Resolution, Projectors Facets: 4K PRO-UHDContrast Ratio, Projectors Facets: 200,000:1Brightness Range Lumens, Projectors Facets: 20004K PRO-UHD, Projectors Facets: YesFeatures, Projectors Facets: Wifi
4k Pro UHDLaser / Lamp, Projectors Facets: LampScreen Size, Projectors Facets: 50 - 300Projector Primary Usage, Projectors Facets: Home Theater

Power Supply Voltage:

Power Supply Voltage: 100 - 240 V AC +/- 10%, 50/60 Hz

Power Consumption (220 - 240V):

Lamp On (Normal/Eco): 355W / 271WStand By (Network On / Off): 2W / 0.3W

Lens Shift Range:

Vertical Lens Shift: ±96.3 % (H Center, Powered)Horizontal Lens Shift: ±47.1 % (V Center, Powered)
See Full Specs Hide Full Specs
Print All Specs

Notes:

*1 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

*2 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4; white light output measured in accordance with ISO 21118.

*3 Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.

*4 4K Enhancement Technology shifts each pixel diagonally to double Full HD resolution. Resolution is Full HD in 3D Mode.
