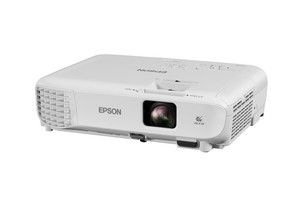

Epson EB-X05 XGA 3LCD Projector

WIDEN YOUR VIEW. STRETCH YOUR DOLLAR.

Ideal for the meeting and huddle rooms, the affordable Epson EB-X05 projector is a multi-functional, packed with features and the perfect choice to present true-to-life images. Captivating presentations are now possible with stunning colour and white brightness of up to 3,300 lumens to ensure crystal clear images. The intuitive home screen puts all commonly used functions together for easy selection.

      • White and Colour Brightness at 3,300lm
      • XGA resolution
      • High contrast ratio of 15,000:1
      • Horizontal keystone slider
      • 10,000 hours lamp life in eco-mode



User-friendly Features
Horizontal Keystone Adjuster
Deliver powerful presentations anywhere in the room. With the easy-to-use sliding Horizontal Keystone Adjuster, screen corrections can be done quickly, easily and accurately, even in a limited space.

With automatic vertical keystone detection and adjustment, there is no longer any need for awkward and time-consuming manual image adjustments that interrupt the smooth flow of your presentation delivery. This handy feature automatically detects the projector’s vertical keystone distortion and corrects it instantly.

Home Screen
View and access your most frequently used functions immediately on the home screen. See all source information at a glance, no matter what the source input. With all the information you need right there on the home screen, wireless connections have never been easier.

Auto Power On
With the auto power on function, projection starts automatically once a projection signal is detected via VGA cable or USB cable, providing you with an easy and hassle-free presentation.

Auto Source Search
With automatic detection of the input source, projection automatically begins without you having to manually switch the input.

Redirected Exhaust
The front-facing exhaust is intelligently positioned to prevent anyone from being exposed to the hot exhaust, especially when on a narrow table. This allows your audience to fully concentrate on the presentation, even if they are seated beside or behind the projector.

Seamless Connectivity and Usability
Wireless Transmission
Enjoy enhanced connectivity and flexibility with in-built Wi-Fi* connectivity. Easily share and transmit images, texts and files from your smart devices using the “Epson iProjection” application for smooth and smart projections.

* Applicable for EB-U42 only. For other models, wireless LAN adaptor ELPAP10 is required.

Epson iProjection*
The iProjection application enables a wireless connection for projecting images and files from your smart devices. The “QR Code Reader” function makes this wireless connection even easier by simply reading the QR code that is projected on the screen from your smart devices.

* In iProjection, projector profile search, multi-screen display, distribution function, audio transfer, movie file transfer and encryption data transfer capabilities are not supported.

Multi-PC Projection Moderator Function
With the control of a host PC, up to 50 terminals can be connected via the multi-PC projection to a single projector. The host PC acts as a moderator, selecting media from up to four PCS or smart devices to be projected simultaneously. With the moderator function, you can maintain control and prevent tampering of what’s projected on screen.

Essential Cost-savings
Longer Lamp Life
With a long lamp life of 10,000 hours in eco-mode, the frequency of costly lamp replacements is reduced, saving you time and money.

Air Filter
With a maintenance cycle of 10,000 hours in eco-mode, the need for regular maintenance of the air filter is minimised to save you time and money.

Easy Lamp Replacement
With the lamp cap located on the upper side of the projector, you can change lamps easily even if the projector is installed on the ceiling. Lamps can be replaced quickly without tools and dismounting of the projector from the ceiling mount.

Impressive Image Quality
High Contrast Ratio
Add brilliance to your presentations. Boasting stunning brightness of up to 3,300 lumens and a high contrast ratio of 15000:1, these projectors enable you to project beautiful, well-defined images wherever you are, regardless of ambient light.

Eco Features
- Uses just 0.2W of power in standby mode
- Projector optics employ lead-free lenses
- Unpainted plastic housing reduces the environment impact
- The flame retardants used in the plastic housing do not contain chlorine or bromine

Better Products for a Better Future™
For more information on Epson’s environmental programmes, visit http://global.epson.com/SR/environment

Projectors Facets:


Resolution, Projectors Facets: XGAContrast Ratio, Projectors Facets: 15,000:1Brightness Range Lumens, Projectors Facets: 2000Features, Projectors Facets: Wifi
Quick CornerLaser / Lamp, Projectors Facets: Lamp

Projection Technology:


Projection Technology: RGB liquid crystal shutter projection system

Brightness1:


White Light Output (Normal/Eco): 3,300lm / 2,050lmColour Light Output: 3,300lm

Connectivity:


USB Interface: USB Type A: 1 (for USB Memory, USB Document Camera, for Wireless LAN Unit, Firmware Update)
USB Type B: 1 (for USB Display, Mouse, K/B, Control, Firmware Update)Analog Input: D-Sub 15pin: 1 (Blue molding)
Composite: RCA x 1 (Yellow)Digital Input: HDMI: 1 (MHL not supported)Audio Input: 2 RCA (White / Red): 1

Contrast Ratio:


Contrast Ratio: 15,000:1

Screen Size (Projected Distance):


Zoom : Wide: 30” - 300” [0.89 - 9.12 m]Zoom : Tele: 30” - 300” [1.07 - 10.95 m]Standard Size: 60” screen 1.8 - 2.17 m

Geometric Correction:


Vertical/Horizontal Keystone: ±30° / ±30°Auto Keystone: Yes (Vertical only)Horizontal Slide Keystone Correction: YesQuick Corner: Yes

Operating Temperature:


Operating Temperature: 5 - 35 °C <41 - 95 °F> (0m / 0ft - 2,286m / 7,500ft)
5 - 30 °C <41 - 86 °F> (over 2,286m / 7,500ft)
(20% - 80% humidity, No condensation)

Operating Altitude:


Operating Altitude: 0 - 3,000 m <0 - 9,843 ft> (over 1,500m / 4,921ft: with high altitude mode)

Start-Up Period:


Start-Up Period: About 6 seconds, Warm-up Period: 30 seconds

Cool Down Period:


Cool Down Period: Instant Off

Internal Speaker(s):


Sound Output: 2W Mono

Direct Power On/Off:


Direct Power On/Off: Yes

Dimension Excluding Feet (W x H x D):


Dimension Excluding Feet (W x H x D): 302 x 77 x 234 mm

Weight:


Weight: Approx 2.5kg

Air Filter:


Maintenance Cycle: 6,000 hours / 10,000 hours

Fan Noise:


Fan Noise (Normal / Eco): 37dB / 28dB

Power:


Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz

Network:


Wireless: Yes (Optional)

Start Up Period:


Start Up Period: About 6 seconds, Warm-up Period: 30 seconds

Optional Wireless & Built In Lan Specifications:


Supported Speed For Each Mode*3: IEEE 802.11b (2.4GHz): 11 Mbps
IEEE 802.11g (2.4GHz): 54 Mbps
IEEE 802.11n (2.4GHz): 130 MbpsWireless LAN Security: Quick Mode: WPA2-PSK, Advanced Mode: WPA/WPA2-PSKSupported Connection Mode: Infrastructure, Access Point

Specifications of Main Parts:


LCD: Size: 0.55” (D10)
Native Resolution: XGALamp: Type: 210W UHE
Life (Normal / Eco)*1: 6,000 hours / 10,000 hours

Notes:

*1 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

*2 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4; white light output measured in accordance with ISO 21118.

*3 Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.

*4 When used in the general offi ce environment (the amount of floating dust: 0.04 - 0.2 mg/m3). Based on the Epson’s in-house test results.
